Highest quality parts and components ensure best possible water quality and avoid downtime. Sensors protect the system from dry running.

An integrated prefilter protects the RO membrane from impurities in the feed water.

The concentrate, which is normally discharged directly into the drain, is recirculated to minimise the waste water.

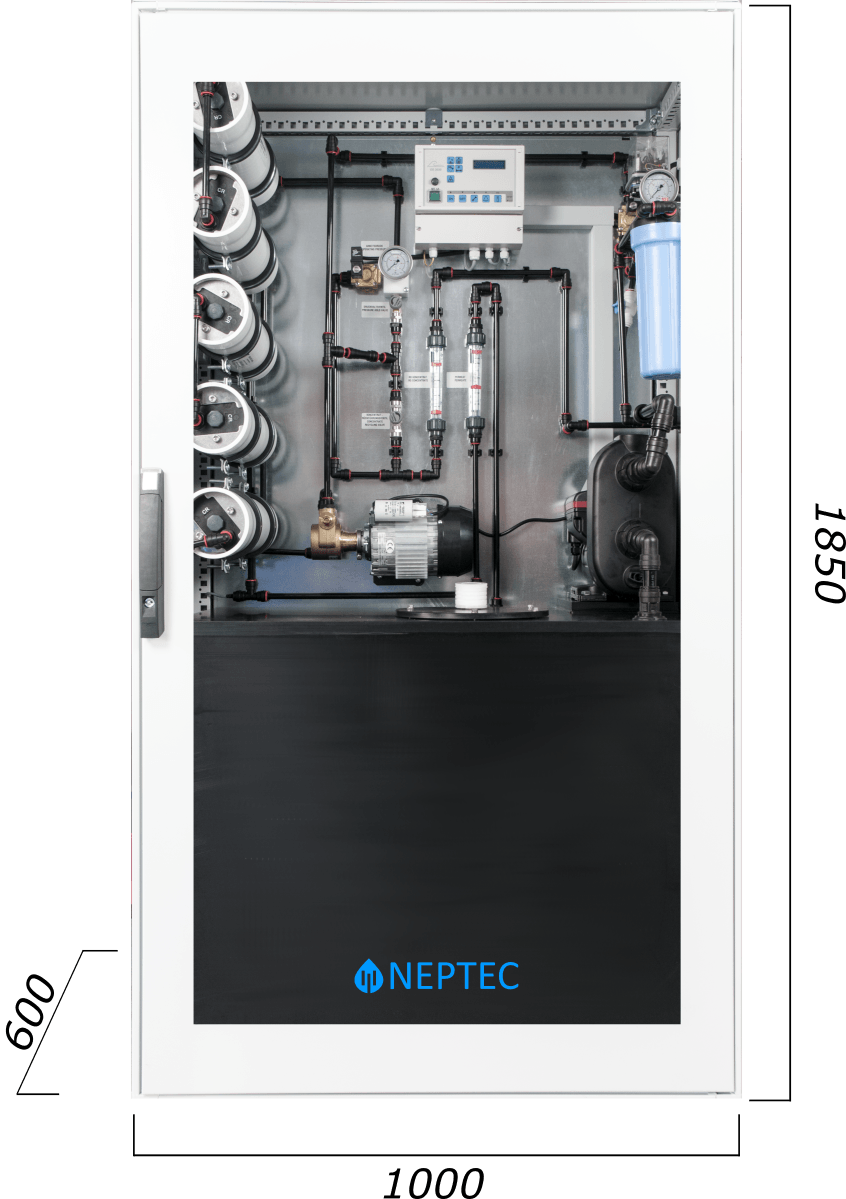

Integrated storage tank for the pure water fed in from the reverse osmosis (and EDI). Made of black PE. Closed, square and opaque construction, with a 200 mm inspection opening for cleaning. A sterile overflow and vent filter prevents the produced water from quality degradation.

The integrated UV immersion tube system ensures a chemicalfree disinfection of the pure water stored inside the storage tank using UV radiation. The UV light irradiates the water and the tank walls above and below the water level with UV-C

radiation, so that no biofilm can develop, and the water is permanently disinfected.

The ion exchange beds in the EDI cell are regenerated continuously so that they do not exhaust in the same way as common ion exchangers.  An EDI unit may operate for many years before a replacement is required. Typically product water resistivity of >15 MΩ.cm is consistently achieved using this process. This technology will increase the lifetime of the final polishing cartridge significantly and also deliver more consistent purity than single-bed ion-exchange systems that may release weakly bound ions as the media exhausts. The EDI module also reduce the release of organic impurities. This helps to lower your operating costs.

Fully integrated, self-priming, compact booster pump with extremely low-noise permanent magnet motor and water cooling. The integrated speed control enabling the keeping of the perfect pressure at the consumers, meaning that the pump performance will increase with increasing demand. Equipped with a built-in dry run protection.
