TRITON RO 6 | 12
Type 3 (RO Water) from tap water with 10L or 50L tank
The compact lab water solution
The TRITON RO 6 | 12 is available in 6 or 12 l/h.
Each system meets Type 3 water directly from tap water.
TRITON RO 6 | 12 systems are optionally upgradable
to adapt to your specific requirements and make
your work as pleasant and comfortable as possible.
TRITON RO 6 | 12
Type 3 (RO Water) from tap water
with 10L or 50L tank
The compact lab water solution
The TRITON RO 6 | 12 is available in 6 or 12 l/h.
Each system meets Type 3 water directly from tap water.
TRITON RO 6 | 12 systems are optionally upgradable
to adapt to your specific requirements and make
your work as pleasant and comfortable as possible.
-

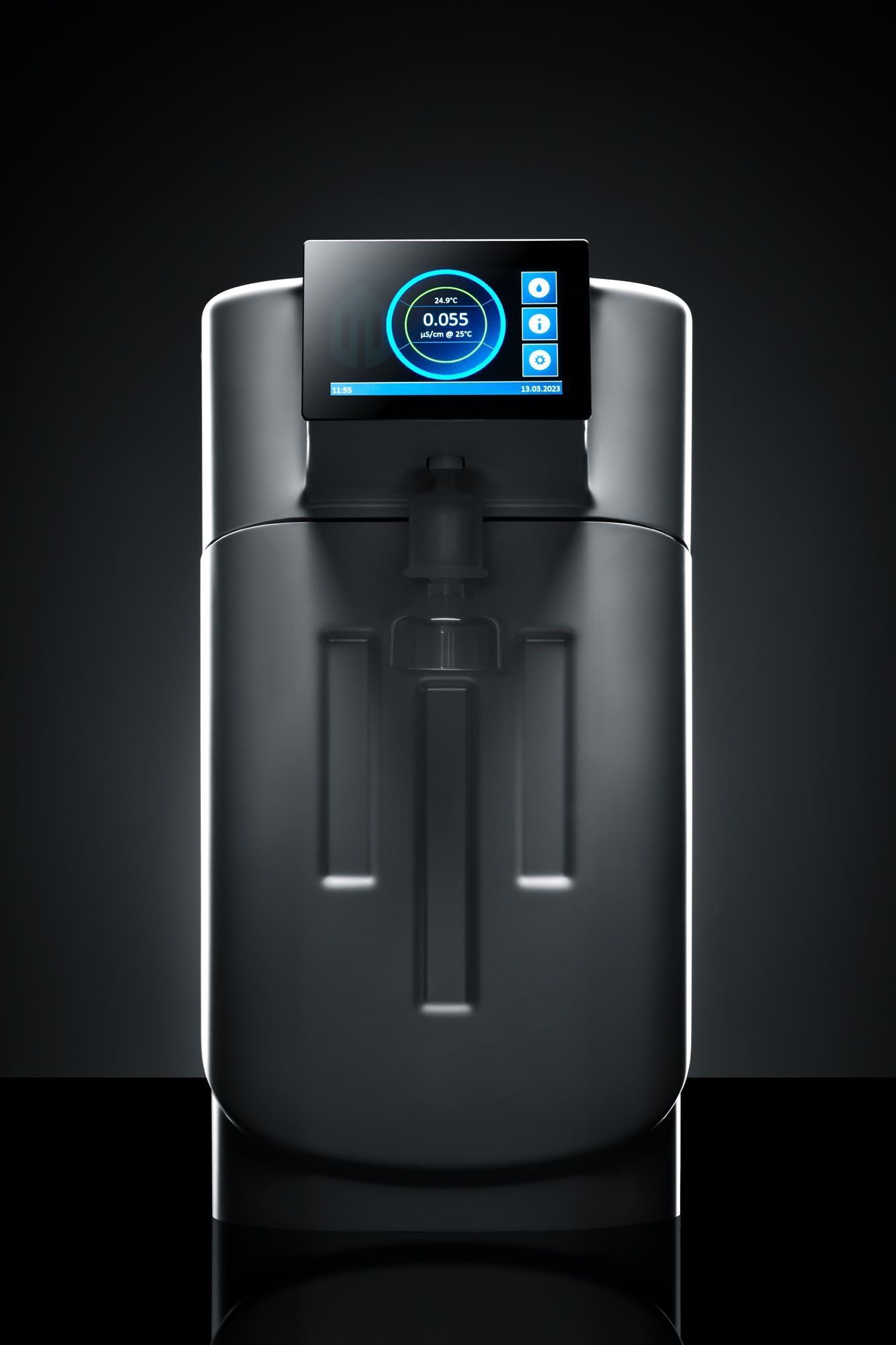

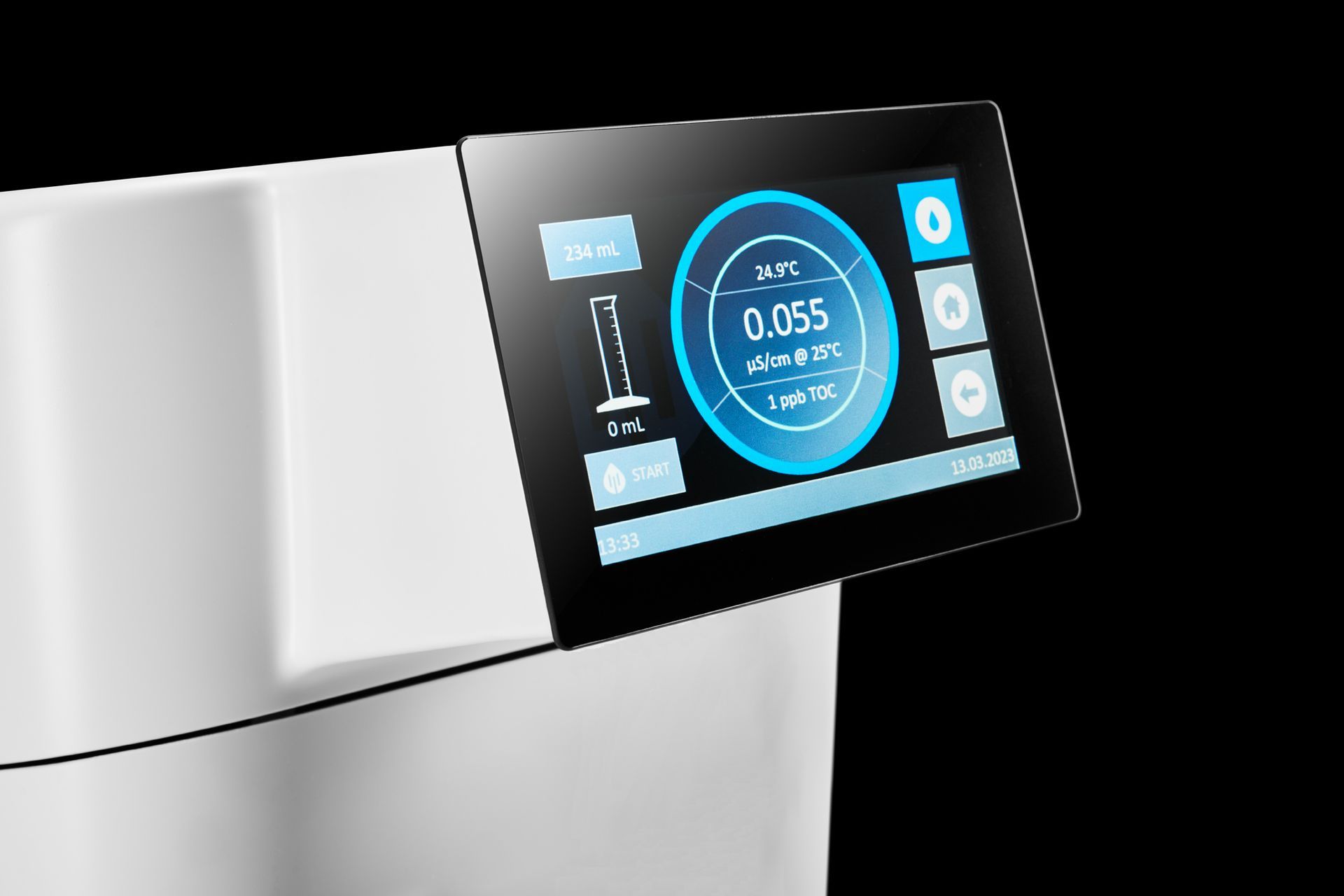

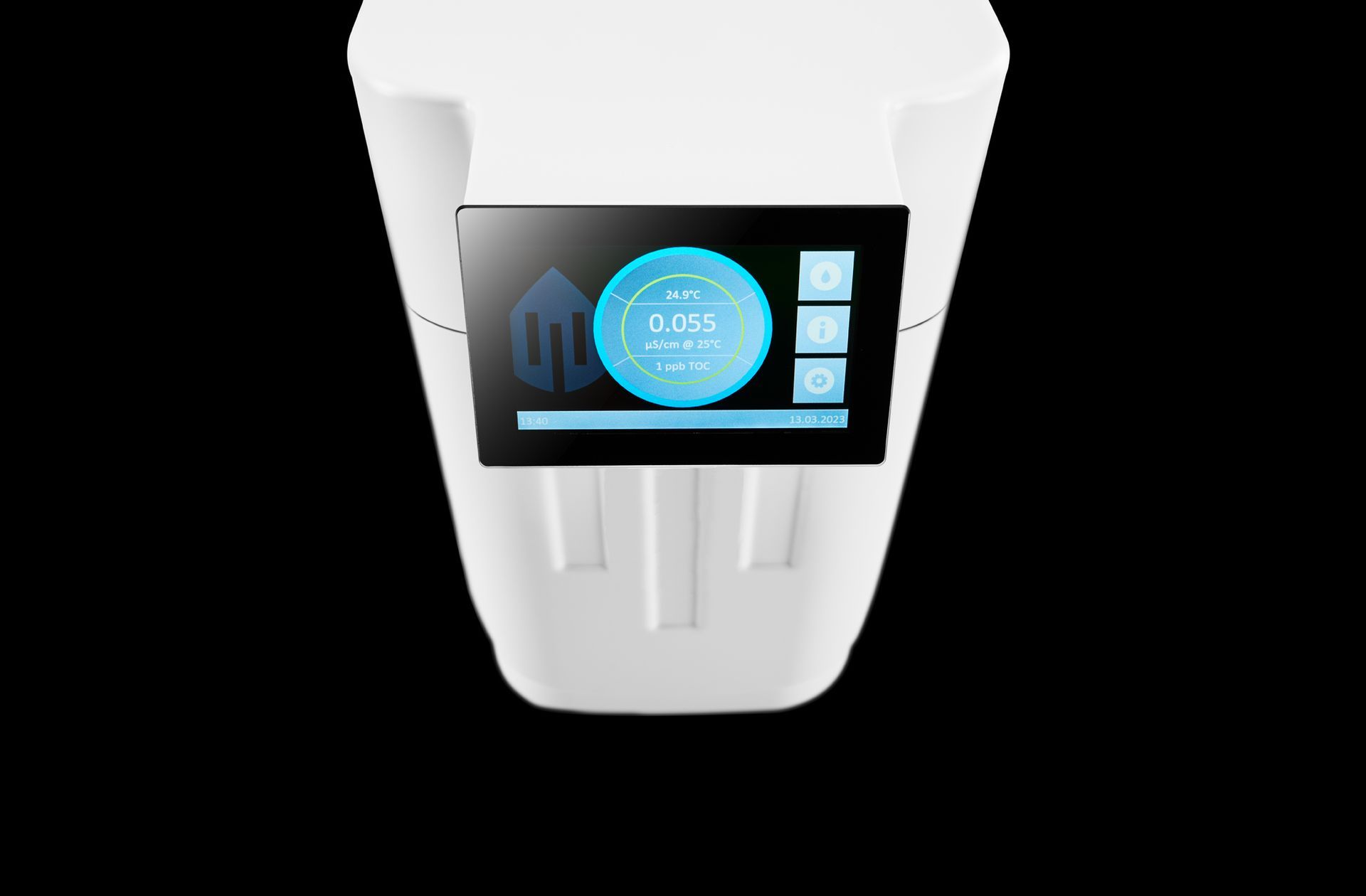

Large, Intuitive Touch Screen (multilingual)
Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.
-
Smart Monitoring
All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature, production rate and operating pressure, the TRITON sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.
-
Large, Intuitive Touch Screen (multilingual)
Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.
-
Smart Monitoring
All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature, production rate and operating pressure, the TRITON sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.
-

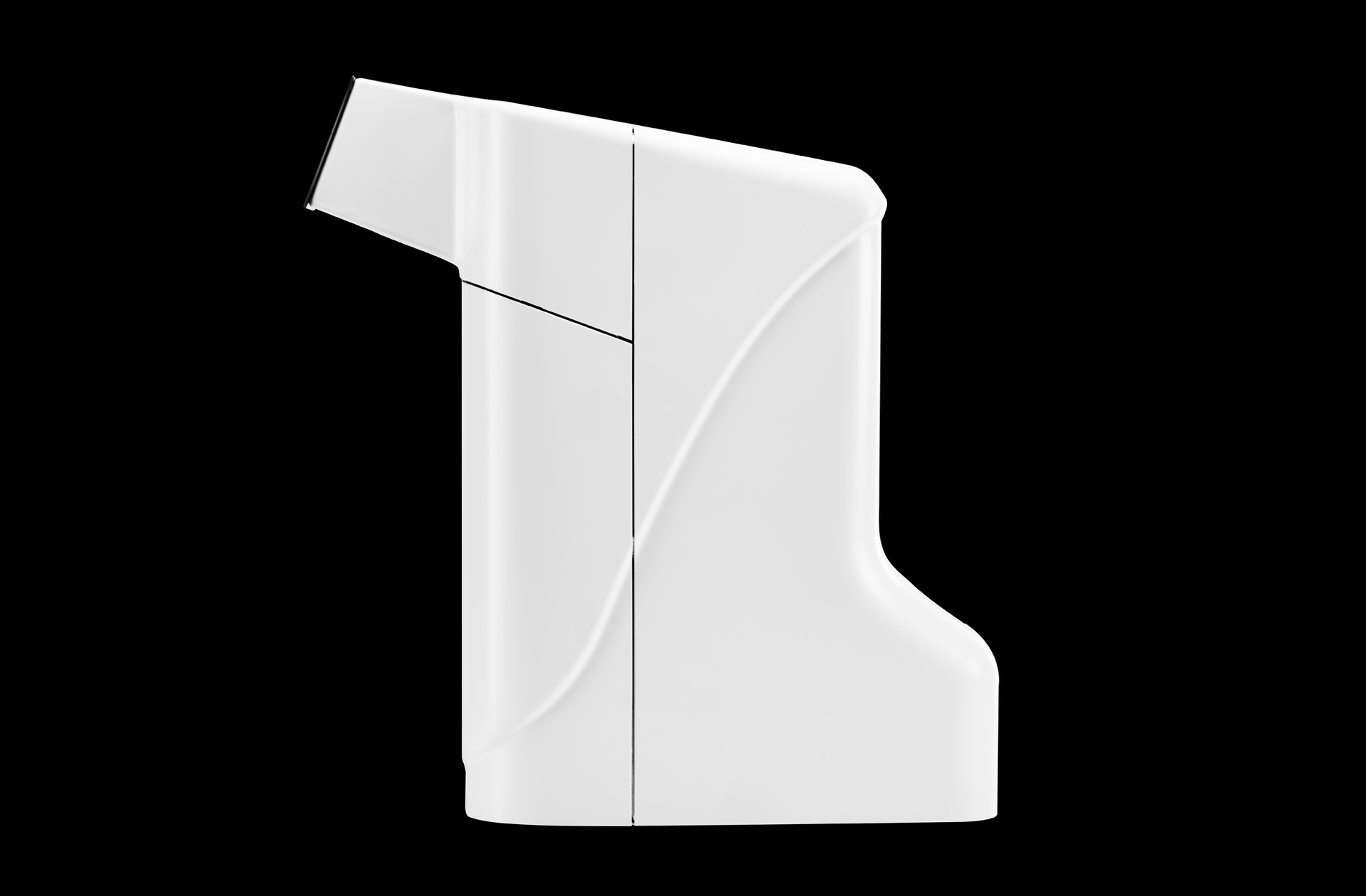

Slim Housing
The compact design is focused on achieving a high level of functionality and efficiency in a small space. TRITON systems are light and easy to transport or move around.
-
Optimized Lab Space
The compact system can be easily integrated in the lab environment. The extremely small footprint take up less space and make the TRITON ideal for crowded or limited spaces. TRITON systems optimizing the use of available space in a lab.
-
Important Features
Despite the compact design, TRITON systems are fully packed with all the necessary components that make life in the laboratory easier and safer. All variants are generally equipped with a pressure reducer, leakage sensor, pressure sensor and flow sensor, among other things.
-
Slim Housing
The compact design is focused on achieving a high level of functionality and efficiency in a small space. TRITON systems are light and easy to transport or move around.
-
Optimized Lab Space
The compact system can be easily integrated in the lab environment. The extremely small footprint take up less space and make the TRITON ideal for crowded or limited spaces. TRITON systems optimizing the use of available space in a lab.
-
Important Features
Despite the compact design, TRITON systems are fully packed with all the necessary components that make life in the laboratory easier and safer. All variants are generally equipped with a pressure reducer, leakage sensor, pressure sensor and flow sensor, among other things.
-
Dependable Operation
Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.
-
Lowest TOC content
The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water.
-
Minimum Operating Costs
The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.
-
Dependable Operation
Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.
-
Lowest TOC content
The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water.
-
Minimum Operating Costs
The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.
Bildtitel
10l Tank
Button
Bildtitel

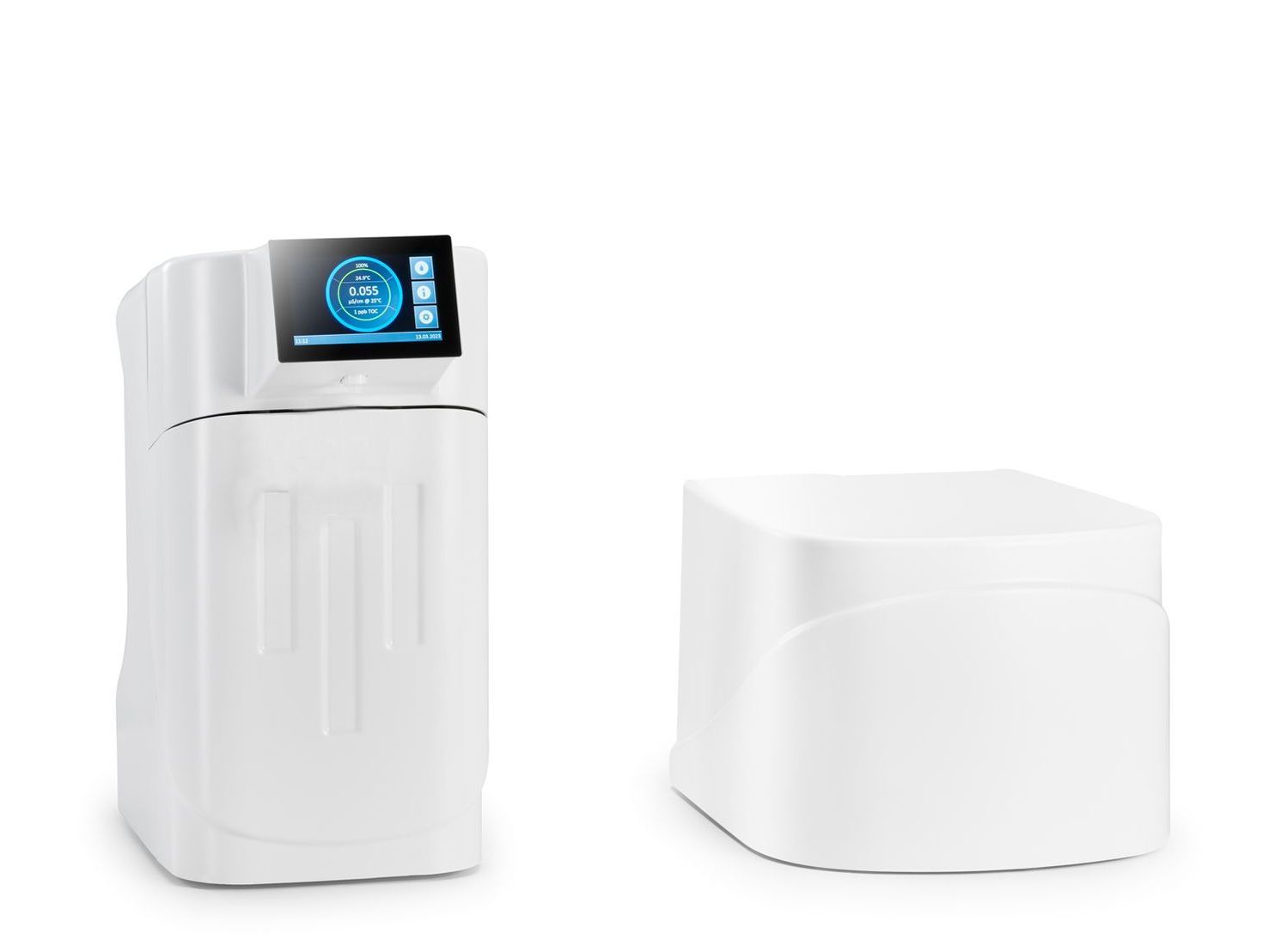

50l Tank with Dispensing Gun
Button
-

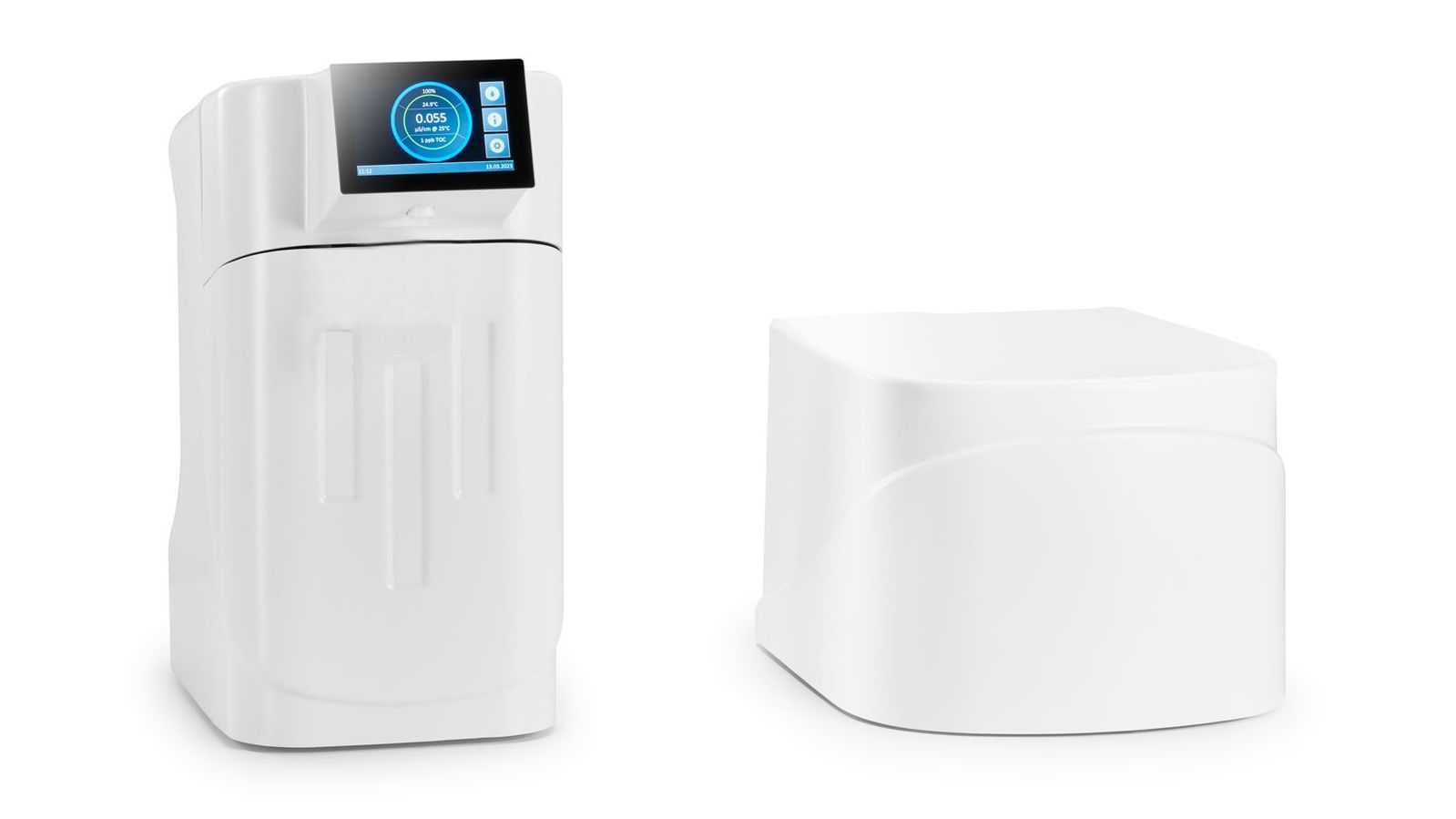

Protection of Stored Pure Water
The RO water storage tank ensures that high-quality water is always on hand and ready to use. Modern design features, a circulation and advanced venting filtration protect against stagnation and bacterial contamination.
-
Various Possibilities
Place the tank under or separately next to the production unit. Use your valuable lab space exactly as it is needed.
-
Cutting-edge Sensors and Monitoring
Check and adjust the tank level in one percent steps to your specific needs. An integrated leak water detector would prevent from a possible malfunction of the unit. As all values are continously monitored you can rely 100% on your TRITON system which saves time and money.
Bildtitel
Untertitel hier einfügenButton
-
Protection of Stored Pure Water
Your pure water storage tank ensures that high-quality Type 2 water is always on hand and ready to use. Modern design features and a circulation protect against stagnation and bacterial contamination.
-
Various Possibilities
Place the tank under or separately next to the production unit. Use your valuable lab space exactly as it is needed.
Upgrade the system with an external 30L, 60L or 100L tank to transform the system into a Type 1 (ultrapure) and Type 3 (RO) system.
-
Cutting-edge Sensors and Monitoring
Check and adjust the tank level in one percent steps to your specific needs. An integrated leak water detector would prevent from a possible malfunction of the unit. As all values are continously monitored you can rely 100% on your HALIOS system which saves time and money.
| Feed water requirements | |
|---|---|
| Feed water quality | Potable tap water |
| Conductivity @ 25°C | < 1000µS/cm |
| Total organic carbon (TOC) | < 1ppm |
| Inlet pressure | 1 - 6bar |
| Temperature | 5 - 35°C |
| RO water specifications | (Type 3) |
|---|---|
| Retention rate | > 98% ions, germs and bacteria |
| Production rate at 10°C | 6 L/h or 12 L/h |
| Production rate at 20°C | 8 L/h or 15 L/h |
Production unit
10L Tank
50L Tank
Feed Water Requirements
| Feed water quality | Potable tap water |
|---|---|
| Conductivity @ 25°C | < 1000µS/cm |
| Total organic carbon (TOC) | < 1ppm |
| Inlet pressure | 1 - 6bar |
| Temperature | 5 - 35°C |
Pure water (Type 3) Specifications
| Retention rate | > 98% ions, germs and bacteria |
|---|---|
| Production rate | 6 L/h or 12 L/h |
