HALIOS

Type 1 (Ultrapure Water) from pure water


The Perfect Lab Water Solution


The HALIOS series is modular-designed,

providing high flexibility to adapt to your

specific needs.


Each system meets and exceeds the

Type 1 standard.


HALIOS systems make your work as

pleasant and comfortable as possible

and maximize your lab productivity.

HALIOS

Type 1 (Ultrapure Water) from pure water

The Perfect Lab Water Solution


The HALIOS series is modular-designed, providing high flexibility to adapt to your specific needs.


Each system meets and exceeds the Type 1 standard.


HALIOS systems make your work as pleasant and comfortable as possible and maximize your lab productivity.

Innovative User Interface

  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature and TOC, your HALIOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

  • ECO Mode

    The ECO mode extends cartridge life by up to 20%. This reduces operating costs and the amount of waste. This pays off both economically and ecologically.

   Innovative User Interface

  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature and TOC, your HALIOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

  • ECO Mode

    The ECO mode extends cartridge life by up to 20%. This reduces operating costs and the amount of waste. This pays off both economically and ecologically.

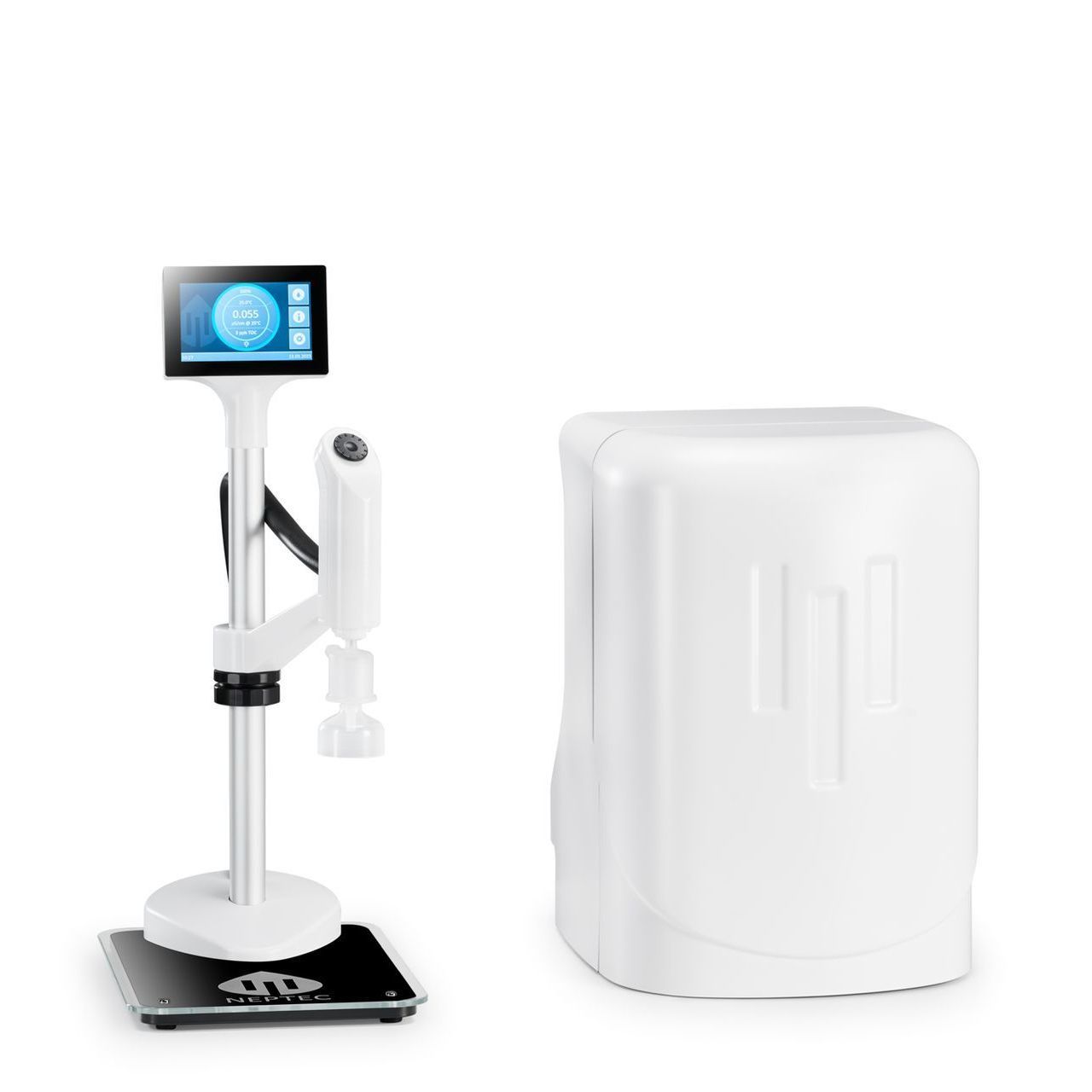

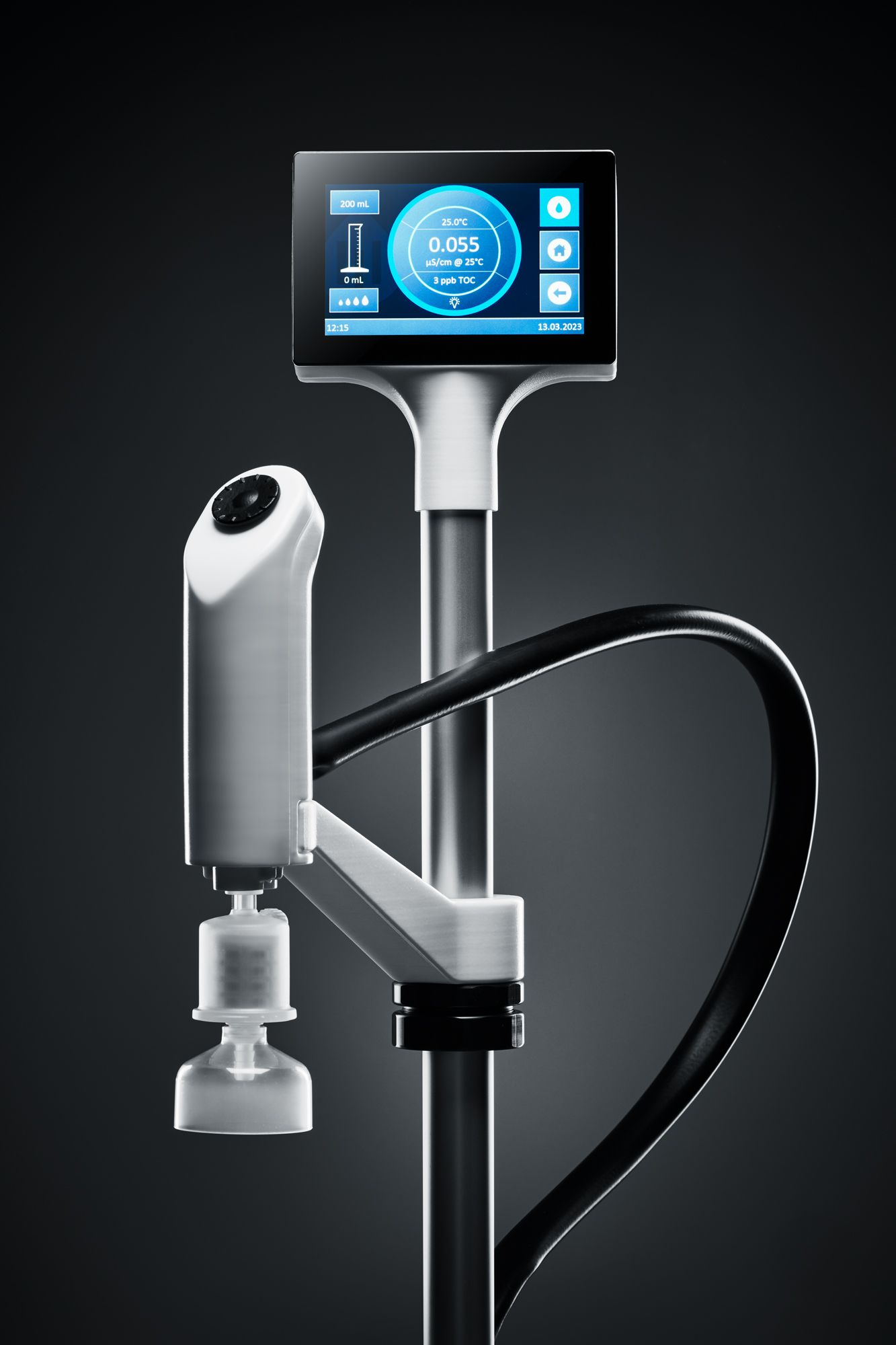

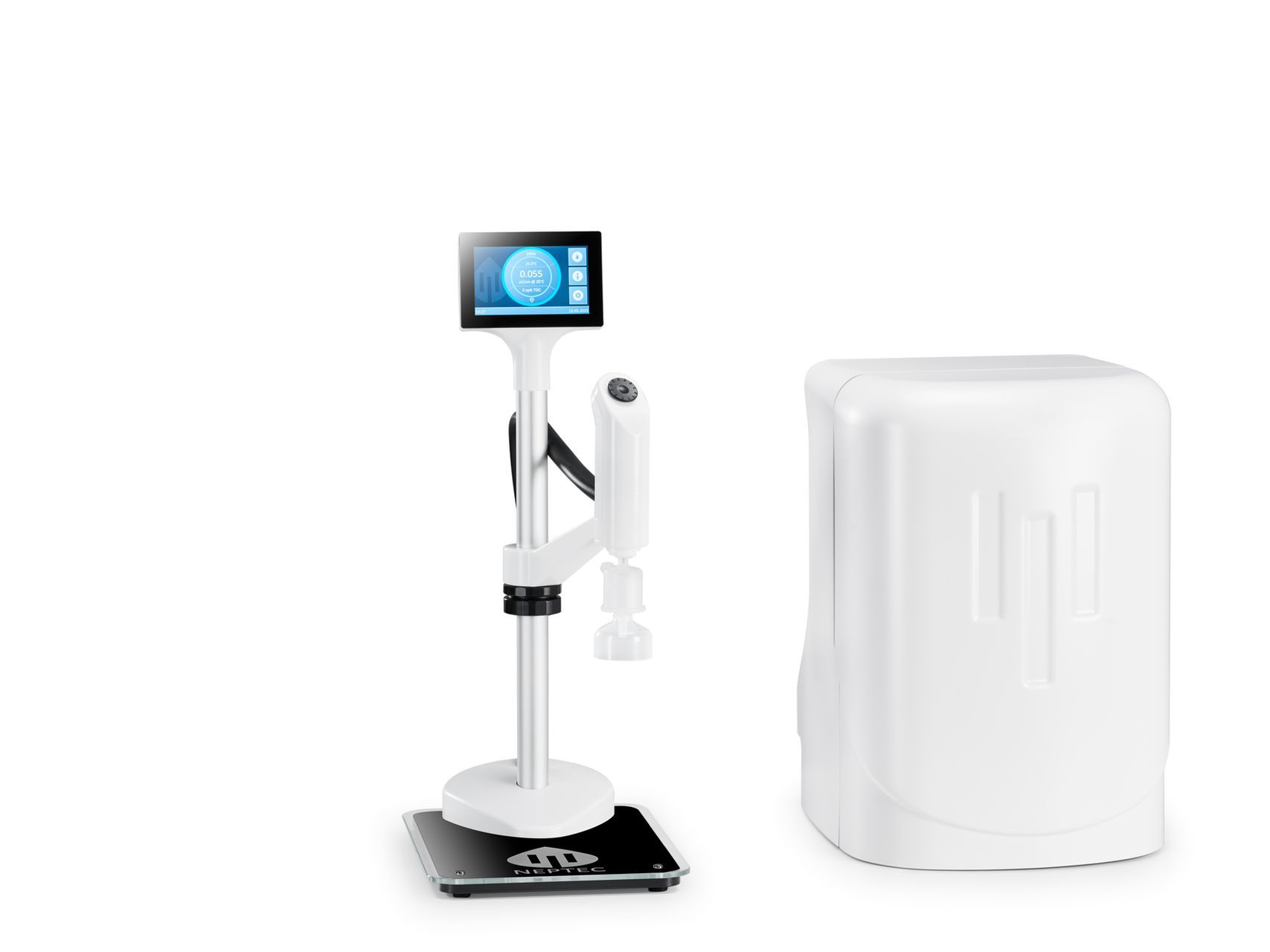

   External Tabletop Dispenser

  • Ergonomic Design

    Dispensing ultrapure water from your HALIOS dispenser feels immediately familiar. The sophisticated shape let you operate the unit easily with just one-hand. All dispensing functions that are useful for daily work in the laboratory can be accessed directly on the handle.

  • Optimized Lab Space

    Interact only with your HALIOS dispenser. The compact main system can be easily integrated in the lab environment. For labs needing more than one ultrapure water point-of-use, up to four dispensers can be connected.

  • Maximum Flexibility

    Detach and reattach your HALIOS dispensing handle in an instant. With the enormous range you are prepared for every situation.

External Tabletop Dispenser

  • Ergonomic Design

    Dispensing ultrapure water from your HALIOS dispenser feels immediately familiar. The sophisticated shape let you operate the unit easily with just one-hand. All dispensing functions that are useful for daily work in the laboratory can be accessed directly on the handle.

  • Optimized Lab Space

    Interact only with your HALIOS dispenser. The compact main system can be easily integrated in the lab environment. For labs needing more than one ultrapure water point-of-use, up to four dispensers can be connected.

  • Maximum Flexibility

    Detach and reattach your HALIOS dispensing handle in an instant. With the enormous range you are prepared for every situation.

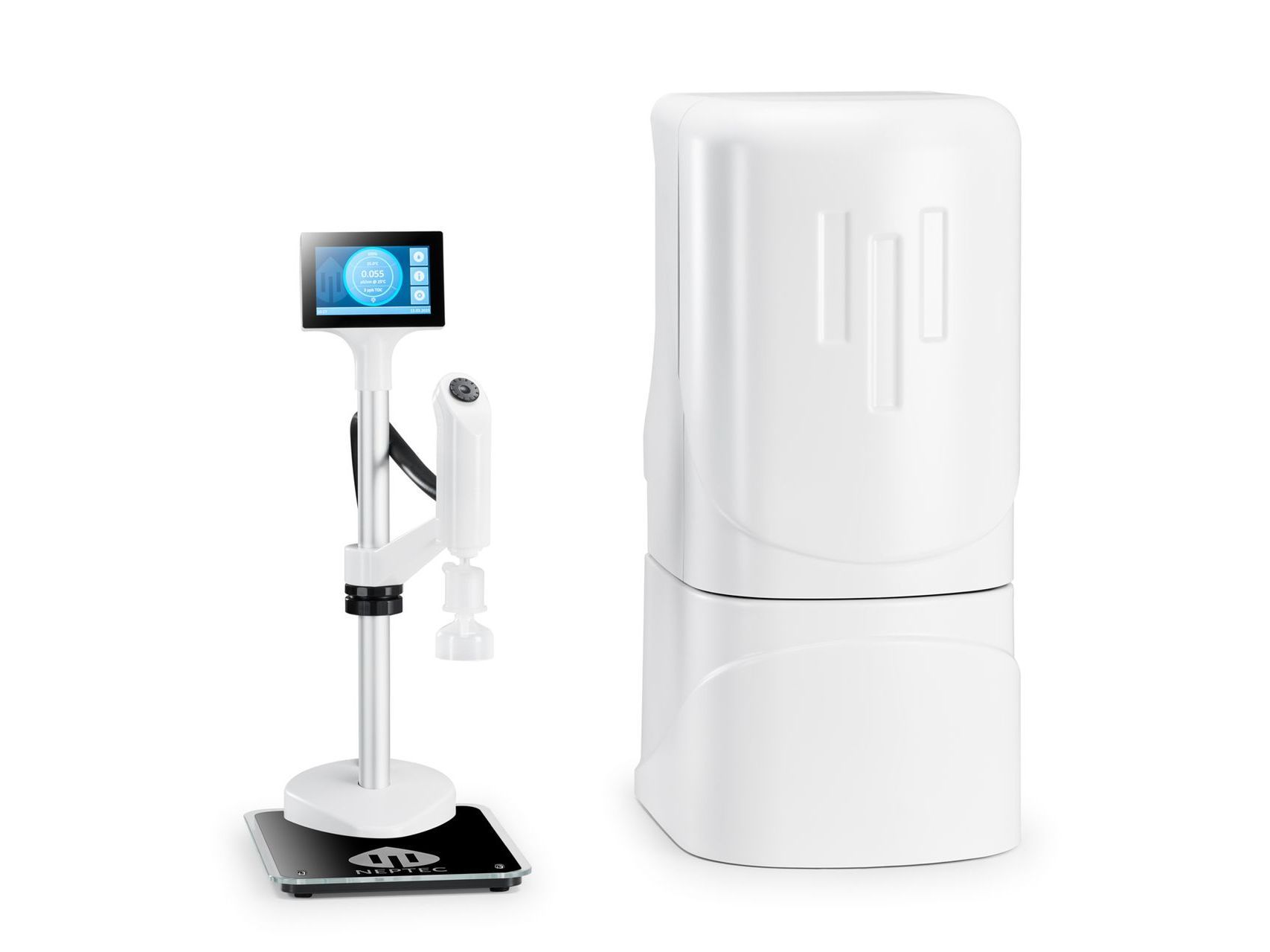

   Compact Production Unit

  • Reliable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    Your HALIOS system provides ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your HALIOS device complies with USP and GLP requirements.

  • Lowest TOC content

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. Moreover, you can have TOC readings continuously checked and displayed in real time by our optionally integrated TOC monitor specially developed for this ultrapure water system. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of our HALIOS series.

    We offer a complete range of services, including validation support using calibrated equipment and a qualification workbook.

Compact Production Unit

  • Reliable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    Your HALIOS system provides ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your HALIOS device complies with USP and GLP requirements.

  • Lowest TOC content

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. Moreover, you can have TOC readings continuously checked and displayed in real time by our optionally integrated TOC monitor specially developed for this ultrapure water system. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of our HALIOS series.

    We offer a complete range of services, including validation support using calibrated equipment and a qualification workbook.

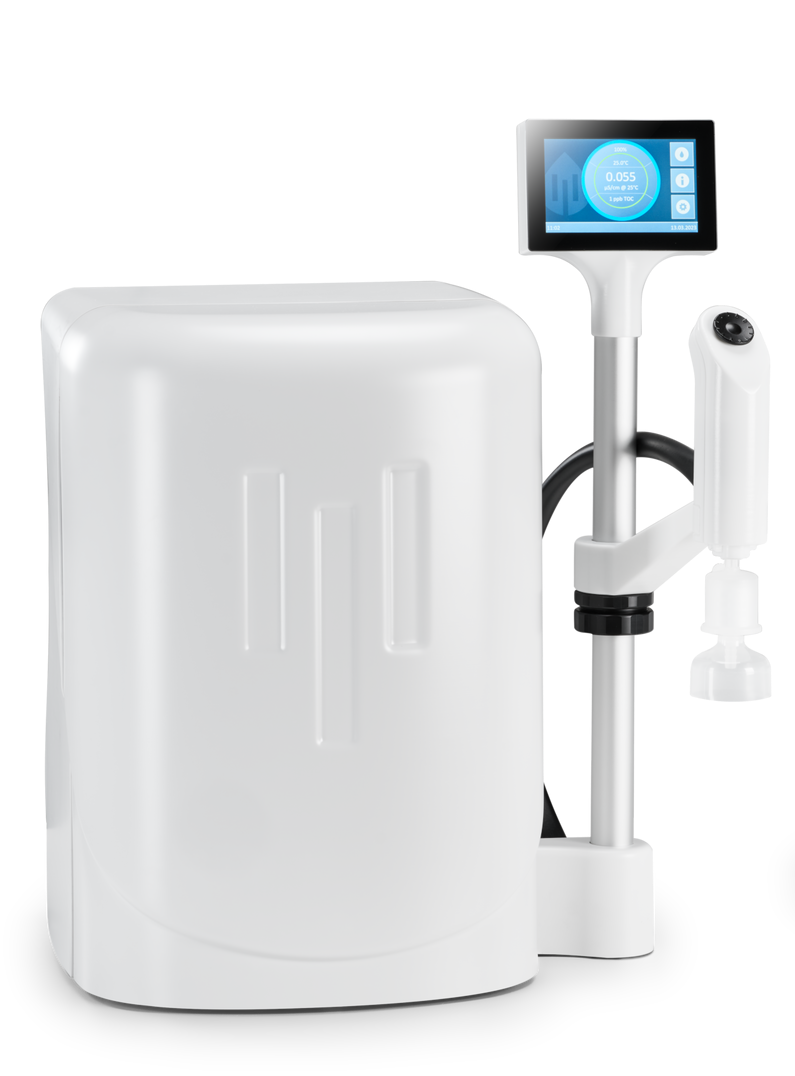

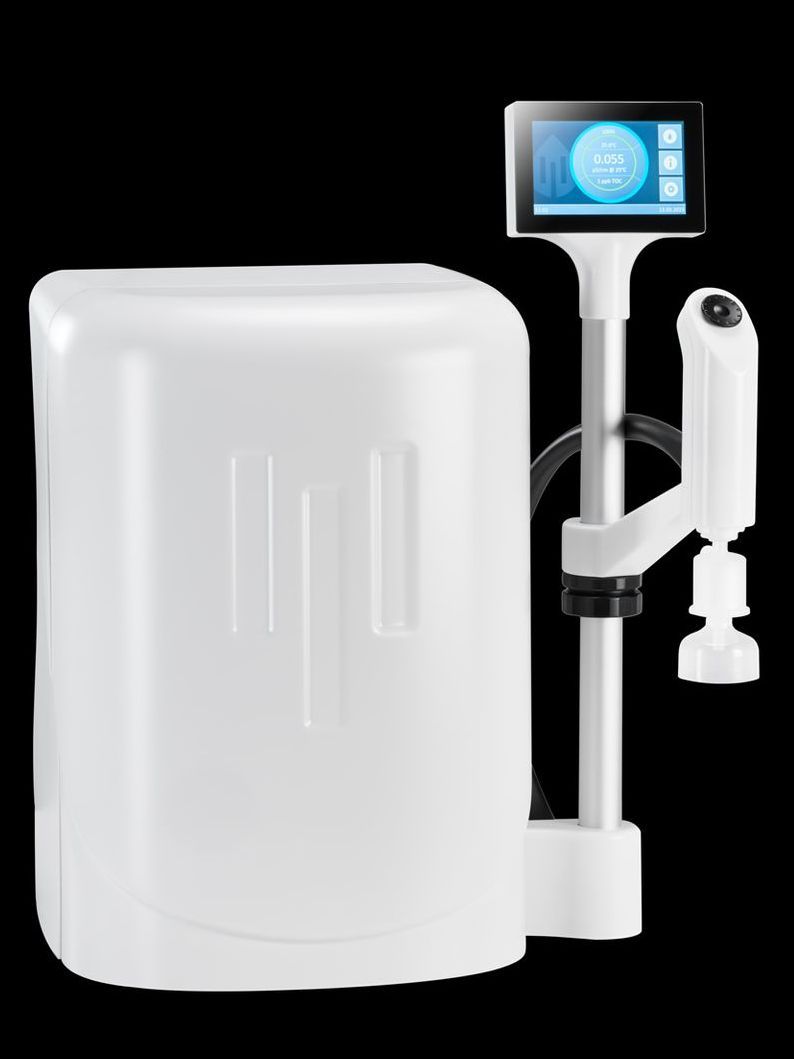

   HALIOS ID
   with Integrated Dispenser

  • ID = Integrated Dispenser

    With the proven NEPTEC operating concept using a removal wheel and an ergonomic handle. Easily operateable with just one hand. Benefit from the enormous range byreleasing the HALIOS handle from the holder with a simple hand movement.

  • ID = Innovative Design

    All innovative features of our HALIOS series are still integrated. At the same time, the footprint has been optimised and the system can now be integrated into almost any laboratory environment in a space-saving way.

  • ID = Intuitive Display

    The large touch screen with the intuitive HALIOS user interface is also standard in our ID models.

HALIOS ID
with Integrated Dispenser

  • ID = Integrated Dispenser

    With the proven NEPTEC operating concept using a removal wheel and an ergonomic handle. Easily operateable with just one hand. Benefit from the enormous range by releasing the HALIOS handle from the holder with a simple hand movement.

  • ID = Innovative Design

    All innovative features of our HALIOS series are still integrated. At the same time, the footprint has been optimised and the system can now be integrated into almost any laboratory environment in a space-saving way.

  • ID = Intuitive Display

    The large touch screen with the intuitive HALIOS user interface is also standard in our ID models.

Specifications
   Specifications
Feed water requirements
Feed water quality Pretreated water using EDI, DI, RO or distilled water
Conductivity @ 25°C < 100µS/cm
Total organic carbon (TOC) < 50ppb
Inlet pressure Max. 6bar
Temperature 5 - 35°C
Ultrapure, Type 1 water specifications
Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 2 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 2 L/min

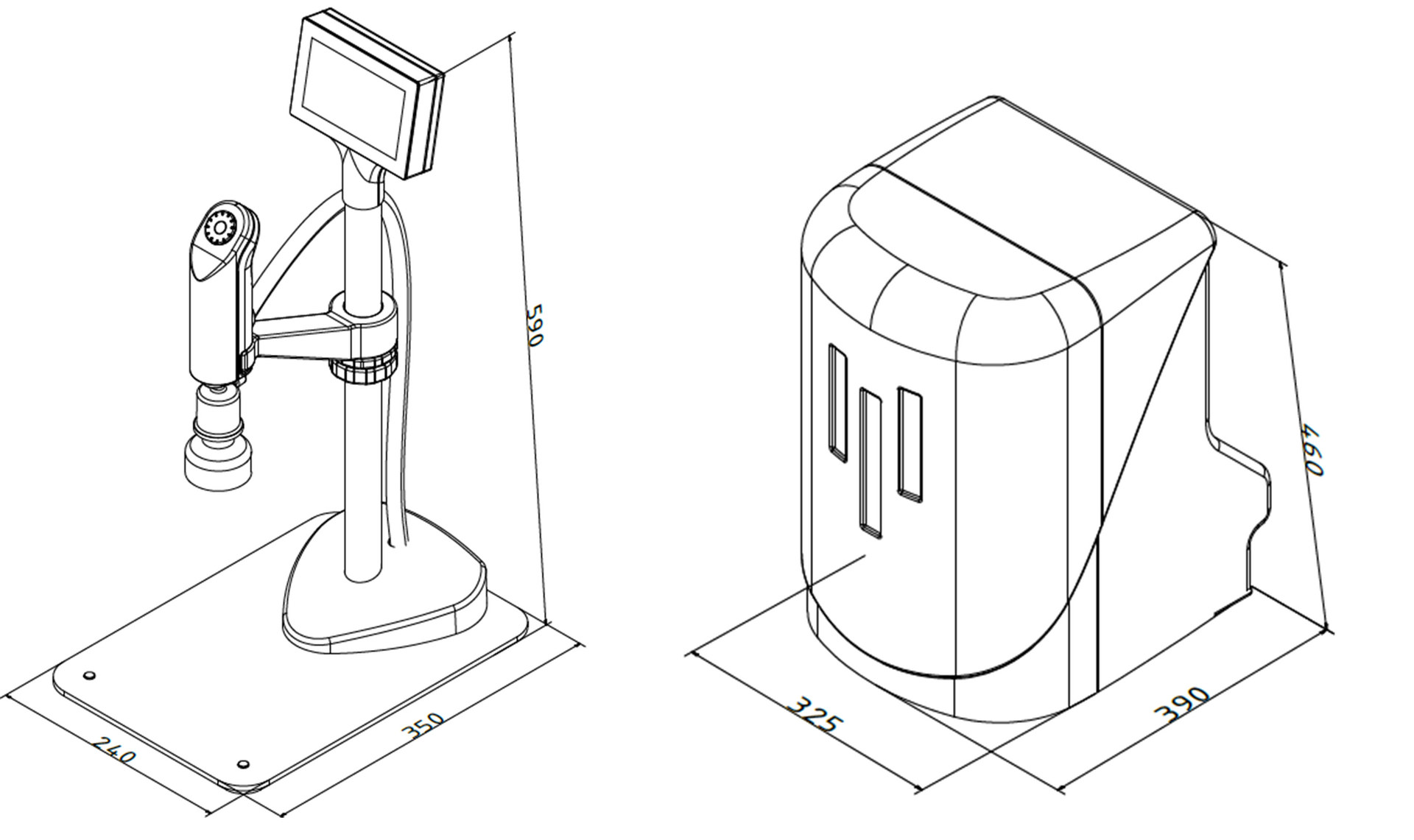

Dimensions HALIOS

Dimensions HALIOS ID

Feed water requirements
Feed water quality Pretreated water using EDI, DI, RO or distilled water
Conductivity @ 25°C < 100µS/cm
Total organic carbon (TOC) < 50ppb
Inlet pressure Max. 6bar
Temperature 5 - 35°C
Ultrapure, Type 1 water specifications
Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 2 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 2 L/min

Dimensions HALIOS

Dimensions HALIOS ID

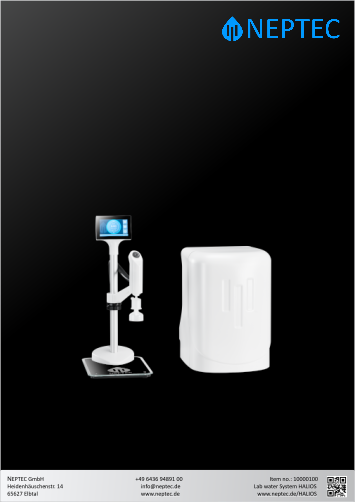

Supporting Documentation
