TALOS ∙ Type 1 (Ultrapure Water) - High-perfomance ultrapure water systems

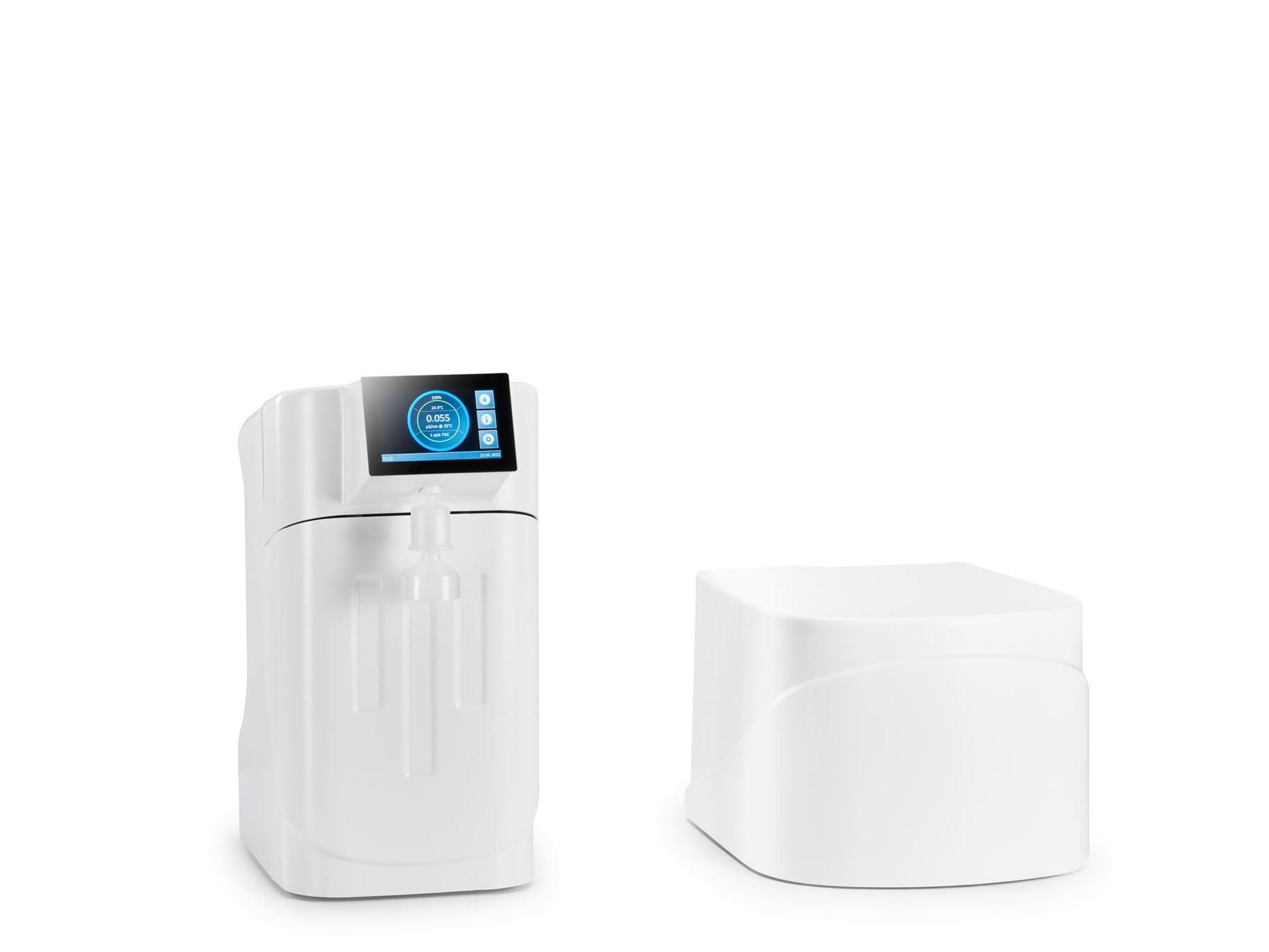

TRITON

Type 1 (Ultrapure Water) from pure water

Smallest footprint, reliable ultrapure water


The TRITON series is modular-designed,

providing high flexibility to adapt to your

specific needs.


Each system meets and exceeds the

type 1 standard.


TRITON systems make your work as pleasant

and comfortable as possible.

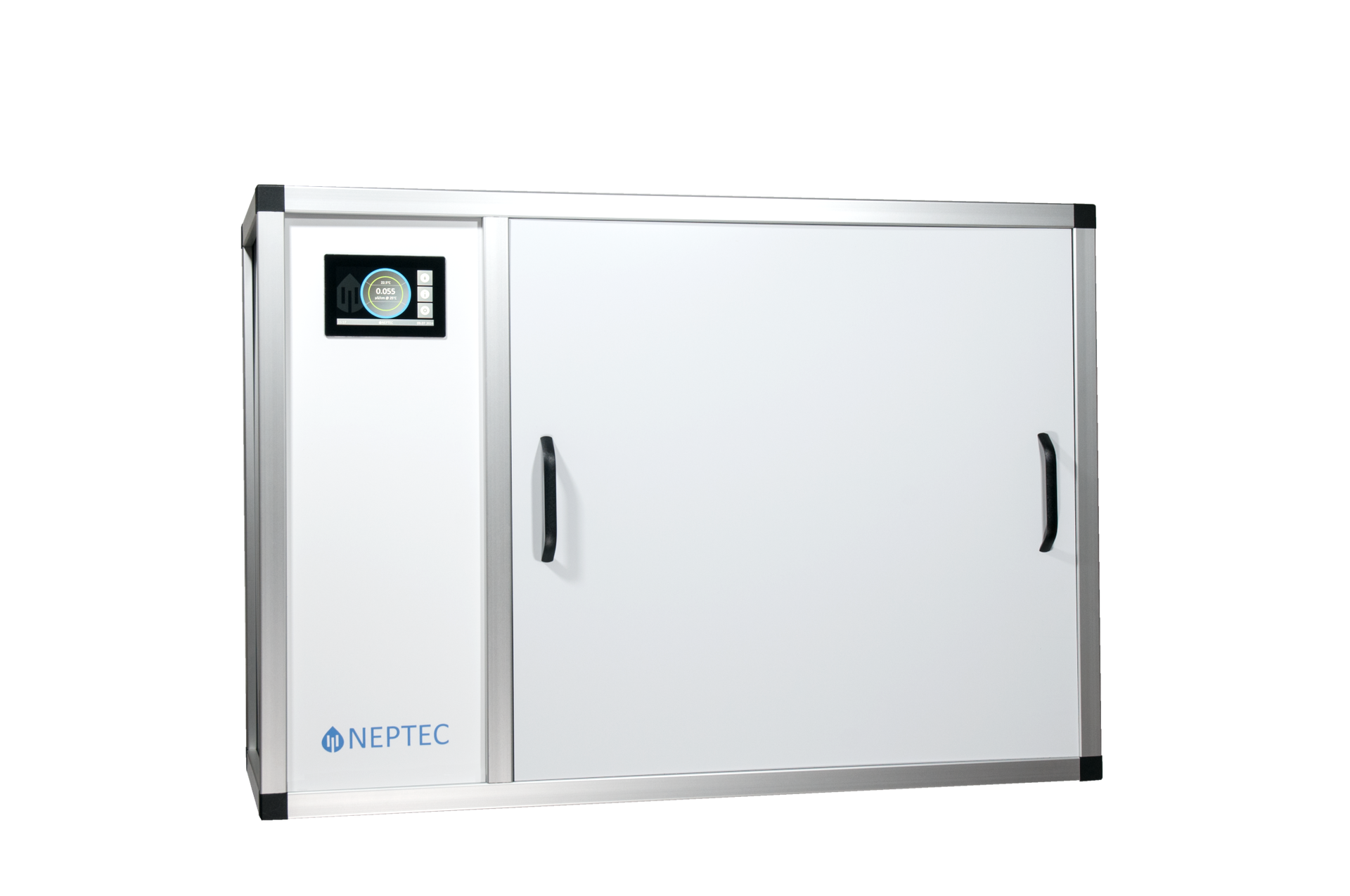

TALOS

Type 1 (Ultrapure Water) from Pure Water


The Pinnacle of Performance and Water Purity


Engineered for excellence, the TALOS ultrapure water system delivers

unparalleled purity, ensuring the highest standards

for your critical applications.


Each system meets and exceeds the

type 1 standard wth a high-performance up to 10l/min.

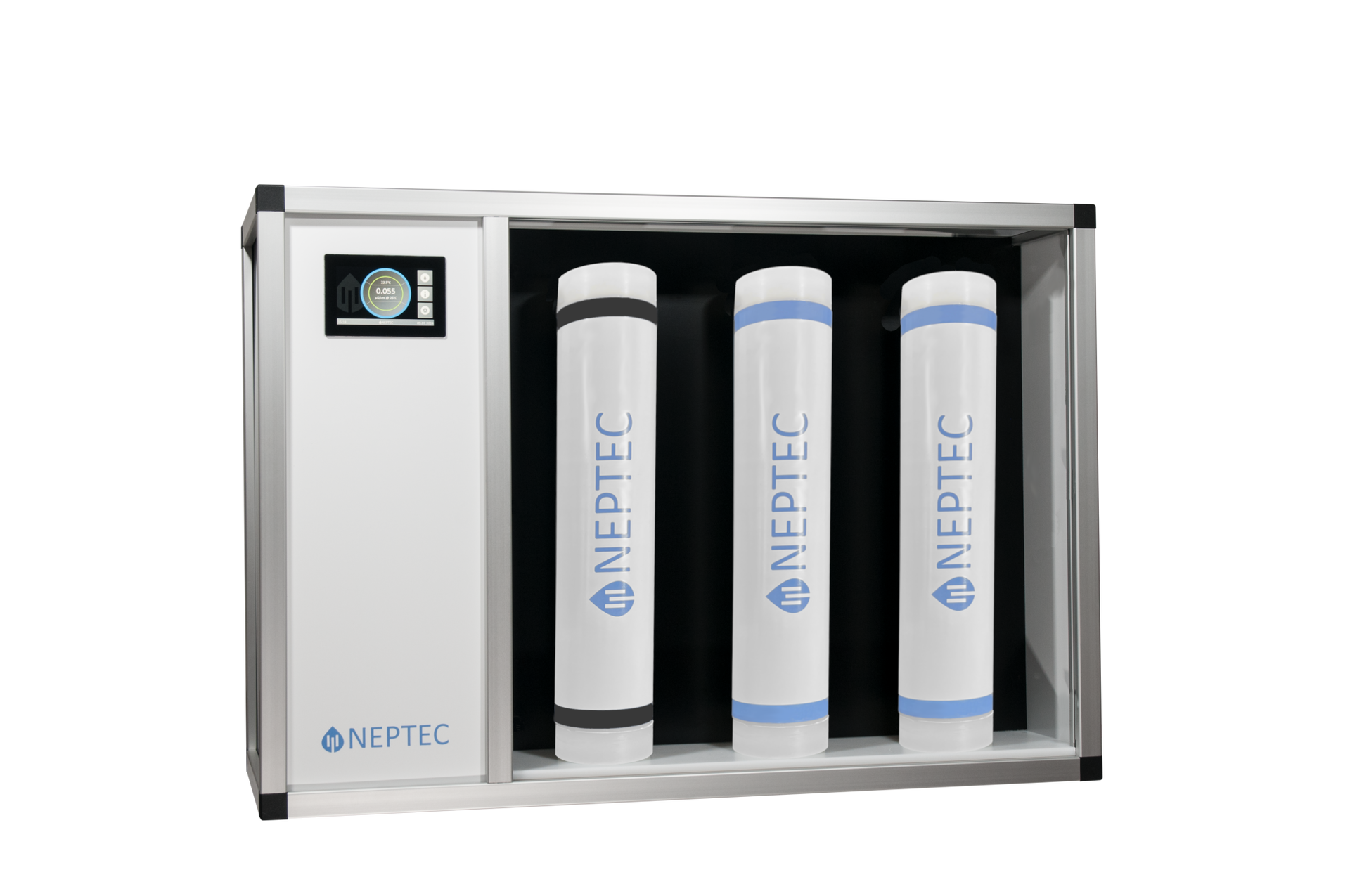

Multi-stage filtration process eliminates impurities,

particulates, and contaminants with precision.

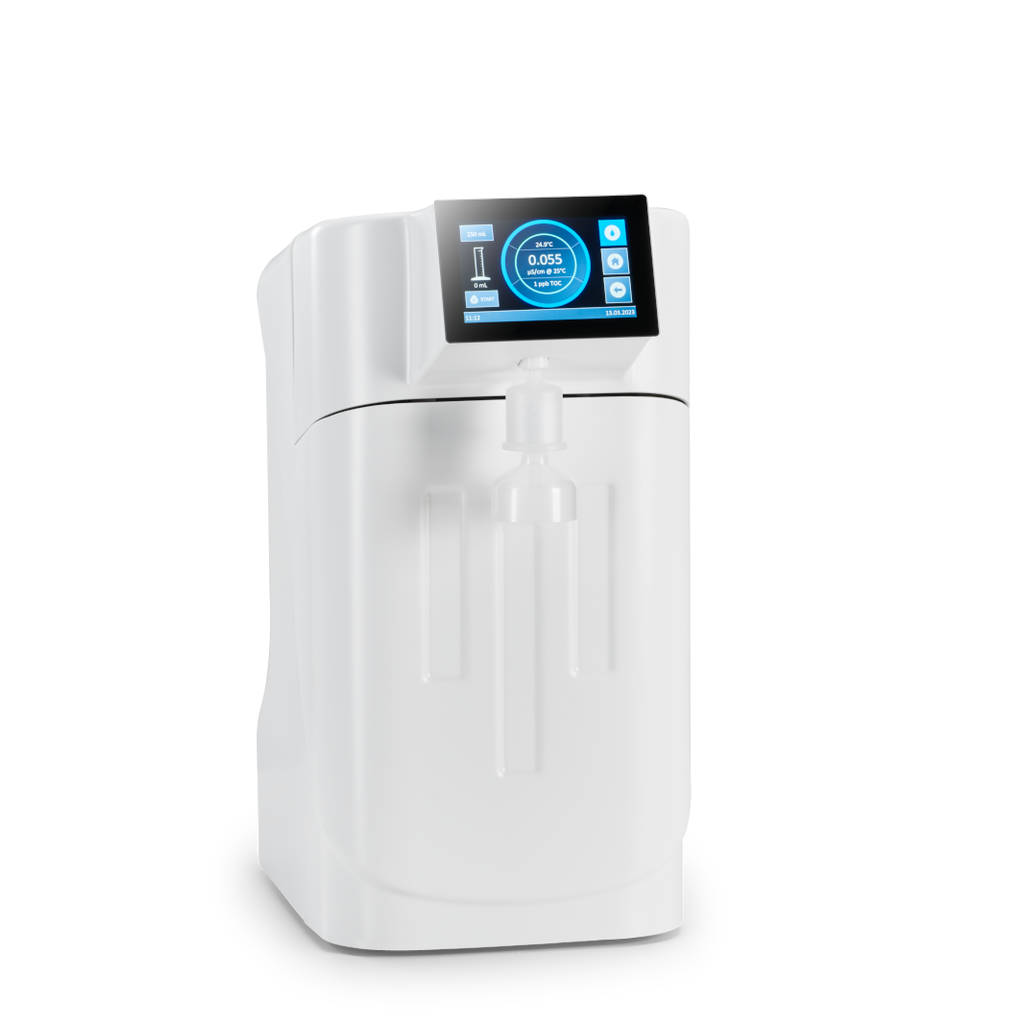

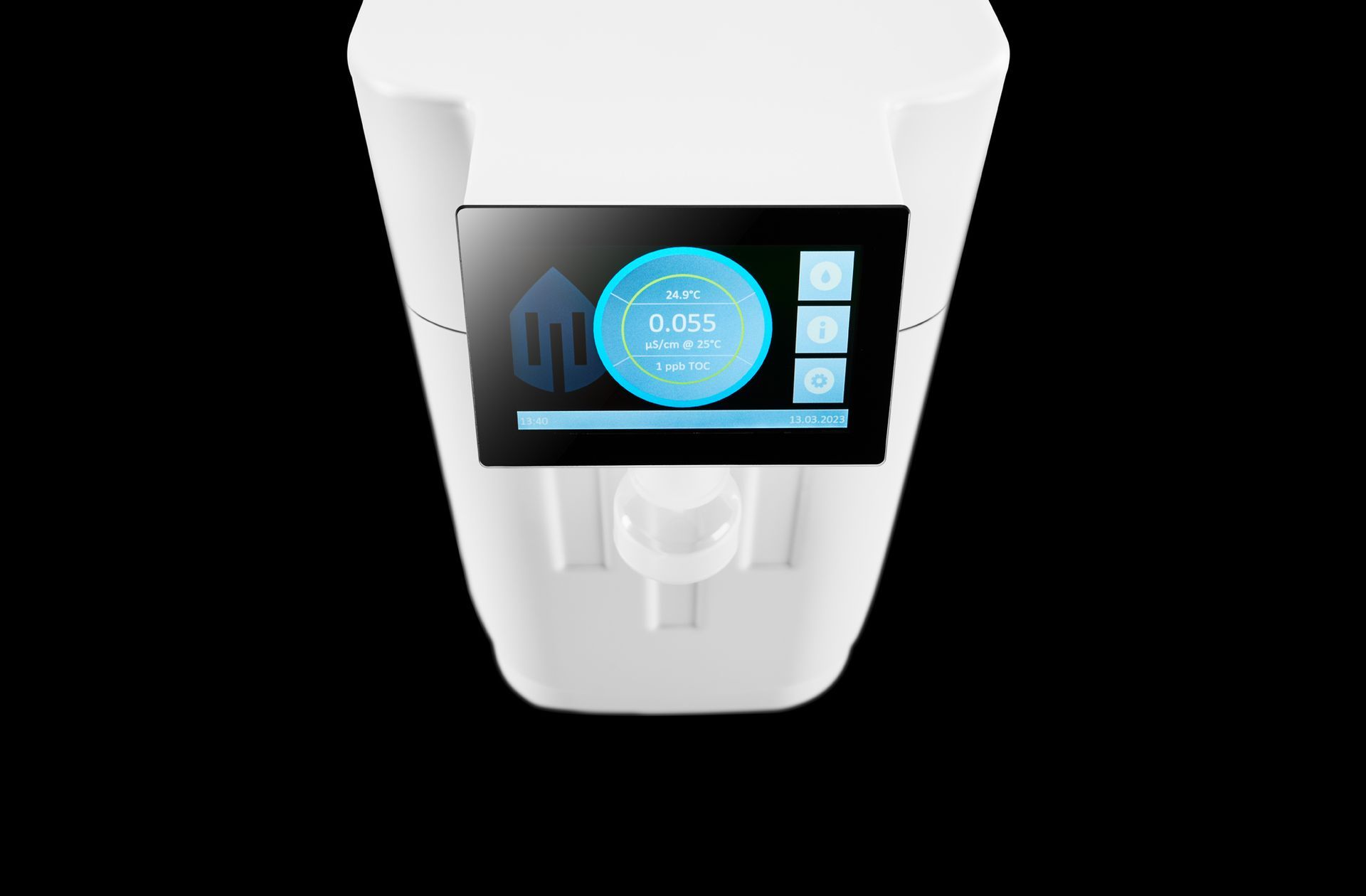

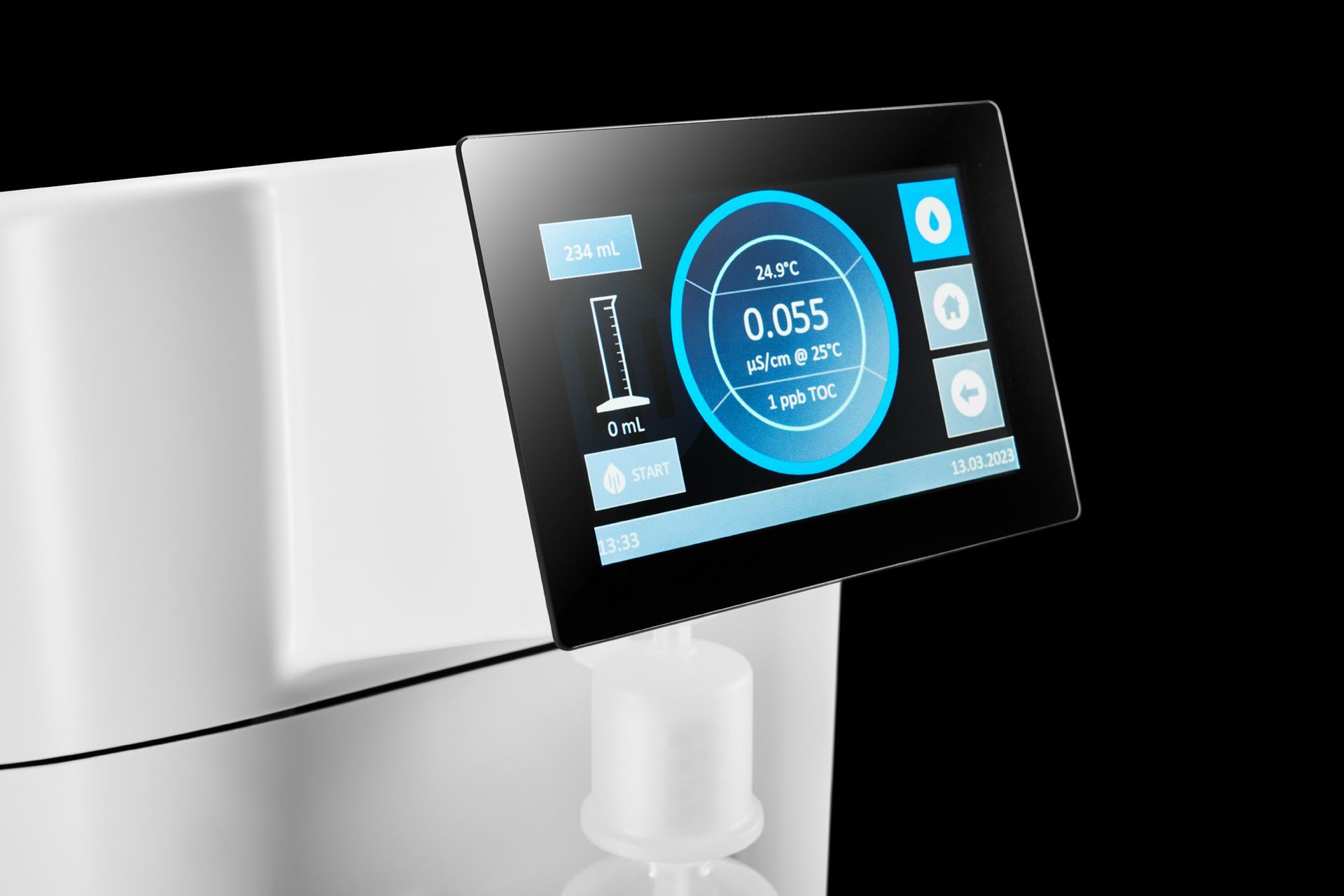

   Innovative User Interface

  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature and TOC, TRITON sytems reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

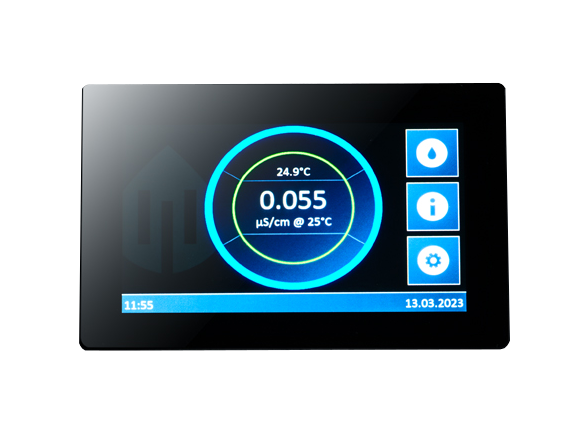

Innovative User Interface

  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity and temperature, the TALOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

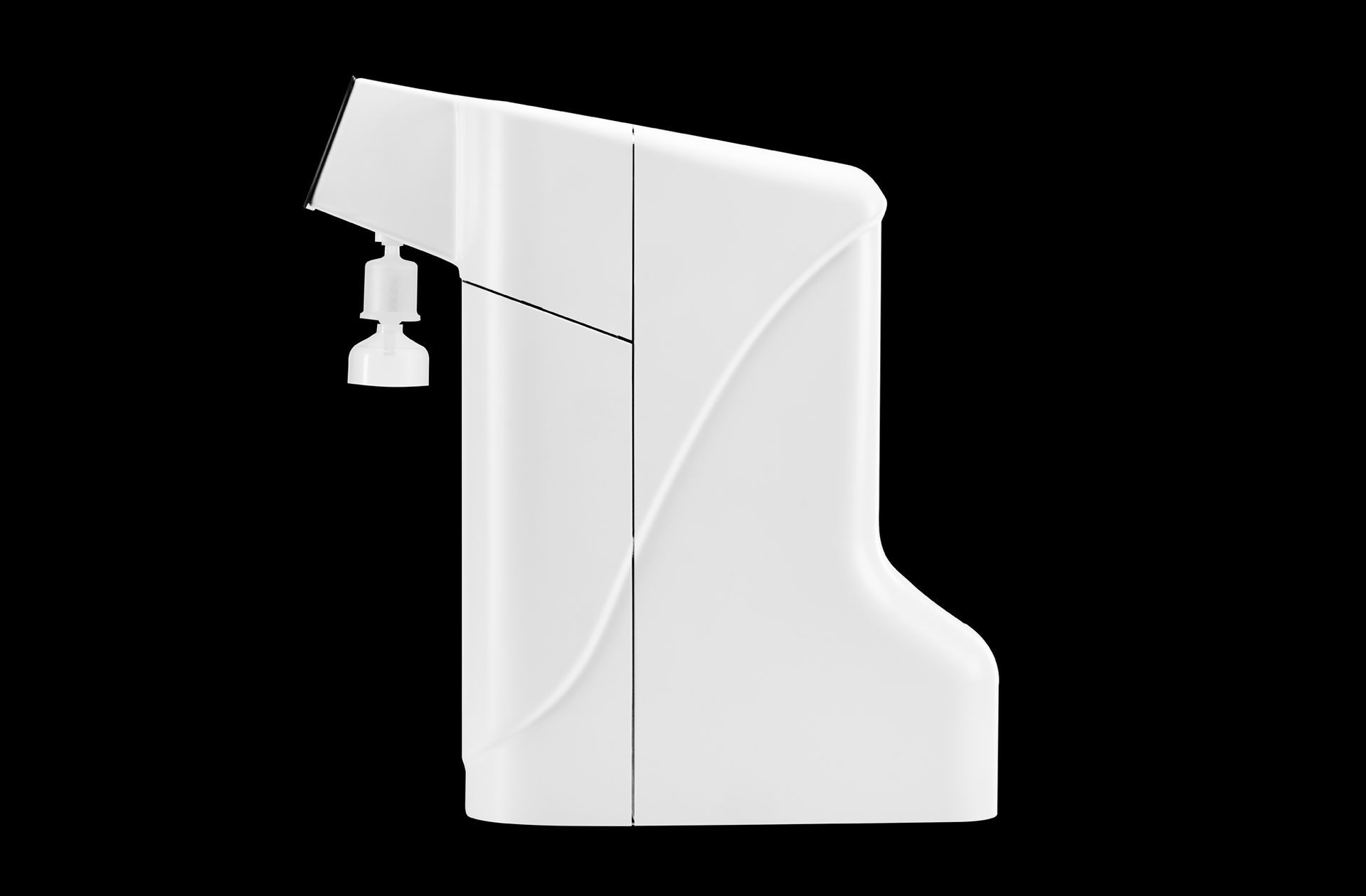

   Compact Design

  • Slim Housing

    The compact design is focused on achieving a high level of functionality and efficiency in a small space. TRITON systems are light and easy to transport or move around.

  • Optimized Lab Space

    The compact system can be easily integrated in the lab environment. The extremely small footprint take up less space and make the TRITON ideal for crowded or limited spaces. TRITON systems optimizing the use of available space in a lab.

  • Important Features

    Despite the compact design, TRITON systems are fully packed with all the necessary components that make life in the laboratory easier and safer. All variants are generally equipped with a pressure reducer, leakage sensor, pressure sensor and flow sensor, among other things.

 Reliable Production Unit

  • Dependable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    TALOS systems provide ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your TALOS device complies with USP and GLP requirements.

  • Minimum Operating Costs

    Due to the combination of high capacity (up to 10 times higher than usual lab water systems), elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of the TALOS series.

    A complete range of services, including validation support using calibrated equipment and a qualification workbook is available on request.

   Reliable Production Unit

  • Dependable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    TRITON systems provide ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your TRITON device complies with USP and GLP requirements.

  • Lowest TOC content

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. Moreover, you can have TOC readings continuously checked and displayed in real time by our optionally integrated TOC monitor specially developed for this ultrapure water system. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of the TRITON series.

    A complete range of services, including validation support using calibrated equipment and a qualification workbook is available on request.

   Specifications
Specifications
Feed water requirements
Feed water quality Pretreated water using EDI, DI, RO or distilled water
Conductivity @ 25°C < 100µS/cm
Total organic carbon (TOC) < 50ppb
Inlet pressure Max. 6bar
Temperature 5 - 35°C
Type 1 water specifications (Ultrapure water)
Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 5 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 10 L/min

  Dimensions

Feed water requirements
Feed water quality Pretreated water using EDI, DI, RO or distilled water
Conductivity @ 25°C < 100µS/cm
Total organic carbon (TOC) < 50ppb
Inlet pressure Max. 6bar
Temperature 5 - 35°C
Ultrapure, Type 1 water specifications
Resistivity at 25 °C 18.2 MΩ∙cm
Total organic carbon (TOC) ≤ 2 ppb ≤ 10 ppb (without UV)
Particles content Particle-free (size > 0.22 µm)
Bacteria < 0.01 CFU/mL < 0.005 CFU/mL (with ultrafilter)
Pyrogens (endotoxins) < 0.001 EU/mL (with ultrafilter)
RNases < 0.003 ng/mL (with ultrafilter)
DNases < 0.4 pg/µL (with ultrafilter)
Flow rate adjustable up to 2 L/min

Dimensions

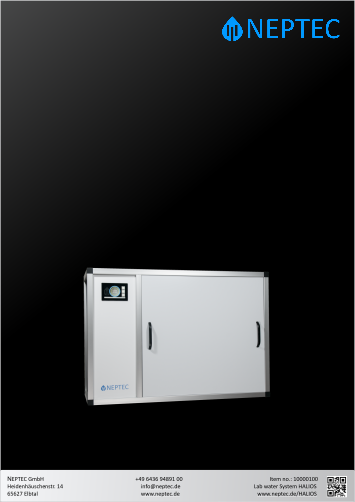

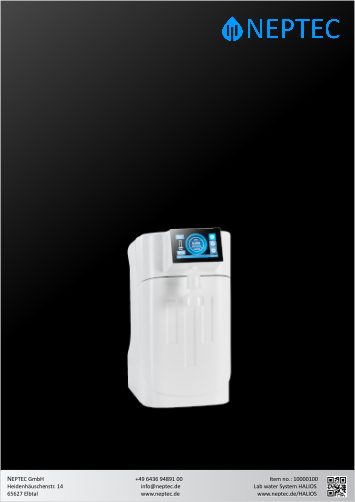

Supporting Documentation
