OLD - HALIOS 6 | 12 & HALIOS 6 | 12 ID ∙ Type 1 + 2 (Ultrapure/Pure Water) from tap water

HALIOS 6 | 12 &
HALIOS 6 | 12 ID

TYPE 1 + 2 from tap water
The Complete Lab Water Solution

Our HALIOS 6 | 12 is modular in design and the ultimate laboratory water solution available in 6 or 12 l/h.

Each system meets and exceeds type 1 and type 2 water directly from tap water.


HALIOS systems are optionally upgradable (EDI module, UV lamp, ultrafilter, etc.) to adapt to your specific requirements and make your work as pleasant and comfortable as possible.


Maximise your laboratory productivity with an innovative HALIOS lab water system.

Integrated 10L Tank
with Recirculation
Real-time
TOC Monitoring
Data
Capture
Integrated
Pre- & Ultrafiltration
Integrated
Leak Water Detector
Superior Deionization
& TOC Removal
Find out more about our Lab Water Systems HALIOS 6 | 12

We would love to hear from you!
ENQUIRE NOW
Innovative User Interface
  • Large, Intuitive Touch Screen (multilingual)

    Due to clear icons the controller allows you to operate the system intuitively just like a smartphone.

  • Complete Traceability

    Dispensing reports ensure a history of all withdrawals. Additionally limit violations and errors will be stored to provide quality traceability over time.

  • Smart Monitoring

    All relevant values are permanently supervised. Further to the general information like conductivity, resisitivity, temperature and TOC, your HALIOS sytem reminds you early enough when a change of consumables is necessary or whenever a parameter is out of specification. This guarantees the correctness of all analysis.

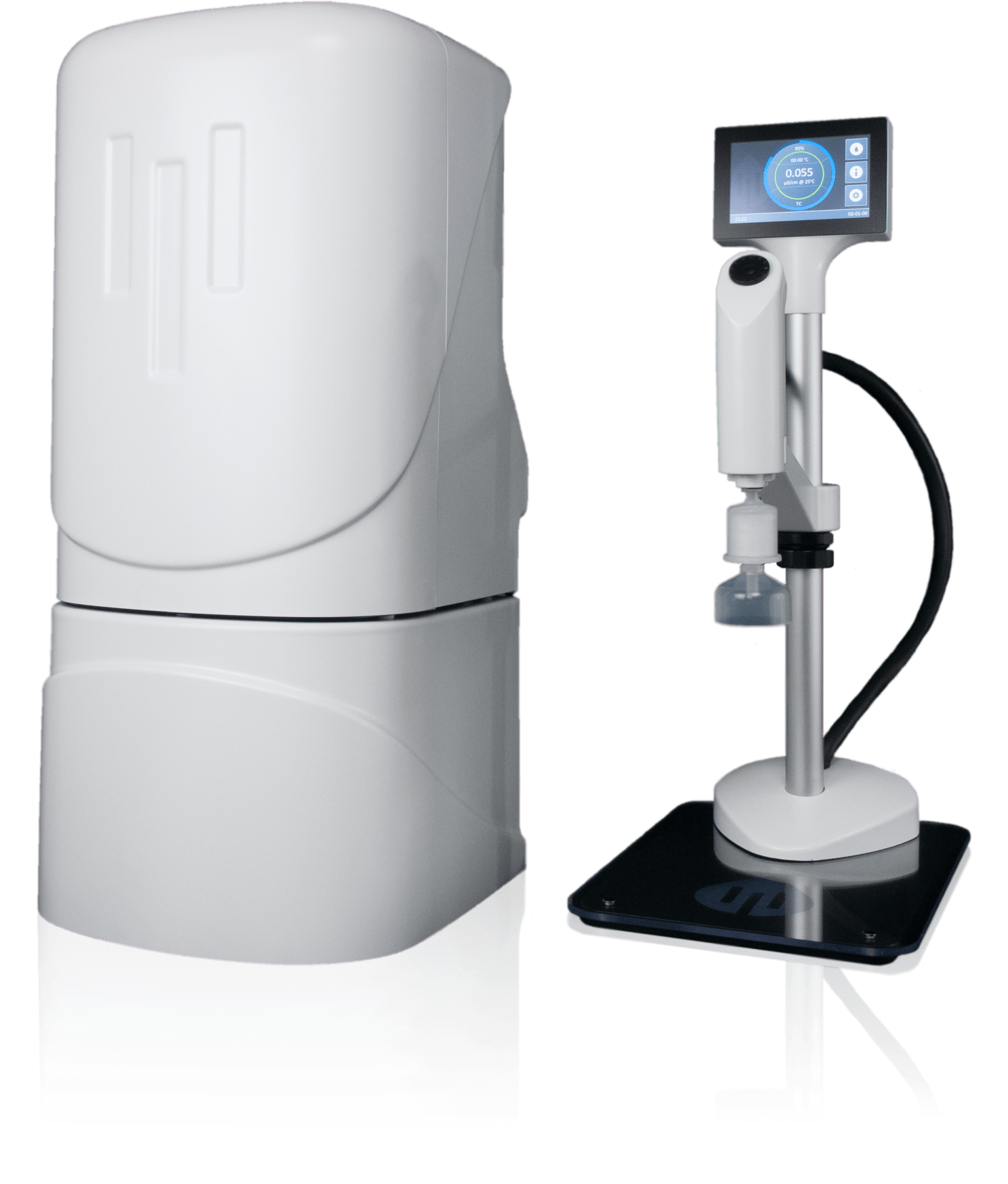

External Tabletop Dispenser
  • Ergonomic Design

    Dispensing ultrapure water from your HALIOS dispenser feels immediately familiar. The sophisticated shape let you operate the unit easily with just one-hand. All dispensing functions that are useful for daily work in the laboratory can be accessed directly on the handle.

  • Optimized Lab Space

    Interact only with your HALIOS dispenser. The compact main system can be easily integrated in the lab environment. For labs needing more than one ultrapure water point-of-use, up to four dispensers can be connected.

  • Maximum Flexibility

    Detach and reattach your HALIOS dispensing handle in an instant. With the enormous range you are prepared for every situation.

Compact And Efficient Production Unit
  • Reliable Operation

    Highest quality parts and components ensure that ultrapure water is always available and avoid downtime in the lab.

  • Superior Ultrapure Water

    Your HALIOS system provides ultrapure water consistently to the trace level with the combination of different technoliogies. You can fully rely on the water purity for your critical experiments. Needless to say that your HALIOS device complies with USP and GLP requirements.

  • Lowest TOC content

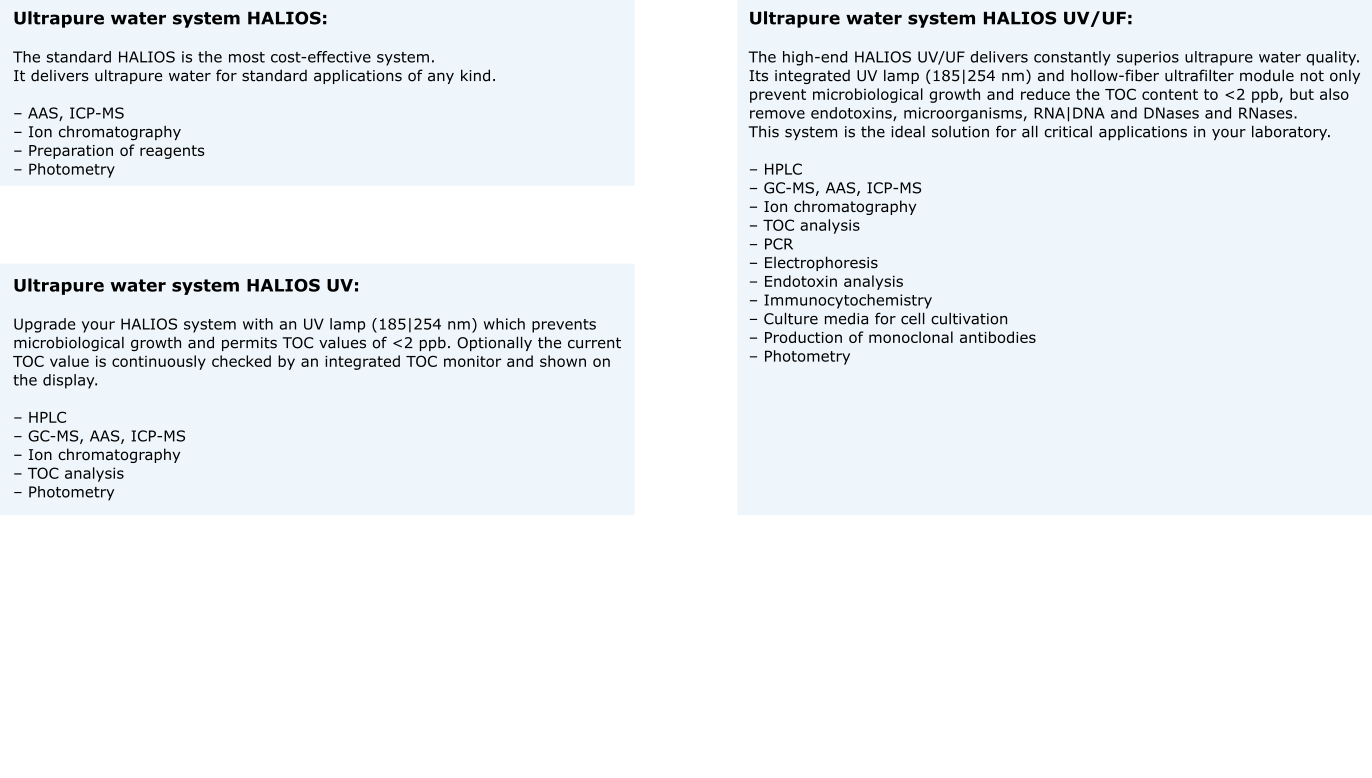

    The 185 | 254 nm UV lamp, which can be integrated as an option, not only prevents microbiological growth, but also minimizes total organic carbon (TOC) in purified water. The low TOC level of < 2 ppb ensures the reproducibility and reliability of your lab results. Moreover, you can have TOC readings continuously checked and displayed in real time by our optionally integrated TOC monitor specially developed for this ultrapure water system. To ensure reliable removal of endotoxins, microorganisms and particles as well as DNase and RNase, you can also add a built-in ultrafilter to your HALIOS system. This ultrafilter makes the unit ideal for use in cell cultivation and your other special laboratory applications.

  • Optional EDI module

    Our HALIOS 6 | 12 can be upgraded with an EDI module. The ion exchange beds in the EDI cell are regenerated continuously so that they do not exhaust in the same way as common ion exchangers.  An EDI unit may operate for many years before a replacement is required. Typically product water resistivity of >15 MΩ.cm is consistently achieved using this process. This technology will increase the lifetime of the final polishing cartridge significantly and also deliver more consistent purity than single-bed ion-exchange systems that may release weakly bound ions as the media exhausts. The EDI module also reduce the release of organic impurities. This helps to reduce your operating costs.

  • Minimum Operating Costs

    The combination of long running, elaborated consumables and the possibility to change all filters separately and only when its needed, the annual costs will be minimized.

  • Compliance & Validation

    Its qualified design, combined with our own quality assurance system is the key to the outstanding quality of our HALIOS series.

    We offer a complete range of services, including validation support using calibrated equipment and a qualification workbook.

10L Storage Tank
optional 30, 60, 100l
  • Protection of Stored Pure Water

    Your pure water storage tank ensures that high-quality Type 2 water is always on hand and ready to use. Modern design features and a circulation protect against stagnation and bacterial contamination.

  • Endless possibilities

    Place the tank under or separately next to the production unit. Use your valuable lab space exactly as it is needed.

  • Cutting-edge Sensors and Monitoring

    Check and adjust the tank level in one percent steps to your specific needs.  An integrated leak water detector would prevent from a possible malfunction of the unit. As all values are continously monitored you can rely 100% on your HALIOS system which saves time and money.

HALIOS 6 | 12 ID
with Integrated Dispenser

  • ID = Integrated Dispenser

    With the proven NEPTEC operating concept using a removal wheel and an ergonomic handle. Easily operateable with just one hand. Benefit from the enormous range byreleasing the HALIOS handle from the holder with a simple hand movement.

  • ID = Innovative Design

    All innovative features of our HALIOS series are still integrated. At the same time, the footprint has been optimised and the system can now be integrated into almost any laboratory environment in a space-saving way.

  • ID = Intuitive Display

    The large touch screen with the intuitive HALIOS user interface is also standard in our ID models.
